| رقم الموديل: | 3950 ألف | اتصال: | تلامس |
|---|---|---|---|
| إشارة الإخراج: | الثرمستور | عملية الإنتاج: | حقن |
| مادة: | كلوريد الليثيوم المقاوم | تصنيف الملكية الفكرية: | IP65 |
| رأس: | أنبوب معدني أو بلاستيكي | قيمة ب: | 3950K 3435K 3977K PT100 |
| المقاومة الاسمية: | 5k ، 8k ، 10k ، 15k إلى 100k | B25/50 القيمة: | 2500 ~ 5000k |
| معامل التبديد: | ≥0.8 ميجاوات/درجة مئوية | الوقت الحراري ثابت: | ≤25s |
| درجة حرارة العمل: | -40 درجة مئوية ~ +250 درجة مئوية | القوة المقدرة: | 50 ميجا واط |
| نطاق درجة الحرارة: | -50 إلى 500 درجة مئوية | ||
| إبراز: | NTC thermistor temperature sensor,PT100 platinum resistor thermocouple,J K type thermocouple sensor,PT100 platinum resistor thermocouple,J K type thermocouple sensor |
||
| Specification Name | Scope | Detection Condition |
|---|---|---|
| R25 (nominal resistance value) | 5K, 8K, 10K, 15K to 100K | Constant temperature 25ºC±0.05ºC |
| R25 Permissible variance(%) | ±1, ±2, ±3, ±5, ±10 | Constant temperature 25ºC±0.05ºC |
| B25/50 or B25/85 (material coefficient) | 2500~5000K | Constant temperature 25ºC±0.05ºC Constant temperature 85ºC±0.05ºC |
| B25/50 Value permissible variance(%) | ±1, ±2 | Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC |
| ∫ (dissipation coefficient) | ≥0.8mw/ºC | Static in the air |
| T (thermal time constant) | ≤25S | Static in the air |
| Ta (Working temperature) | -40ºC~+250ºC | |
| Pn (rated power) | 50mw | Within working temperature |
| Case and head | Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing | |
| Lead wire | #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request | |
| Terminal | Can be riveted according to the requirements of various terminals | |

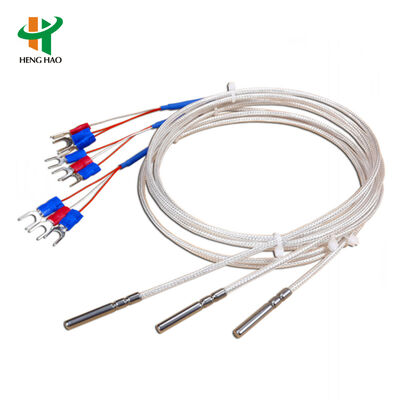

| Product name | PT100 temperature sensor (Thermocouples, hot resistance) |
|---|---|
| Graduation number | PT100, CU50, PT1000, K, E, J, T etc. |
| Temperature range | -50 to 500ºC |
| Chip imported from | Heraeus - Germany |
| Temperature probe | 304 stainless steel, plastic or other according to client's request |
| Accuracy Grade | A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1) |
| Temperature probe size | 4*30mm, or according to client's request to design |
| Thermal time constant | 0.5S |
| Lead wire options |
Three core sliver tetrafluoride shielded wire (-50~200ºC) Silicone wire (-200~200ºC) Three core high temperature wire (-40~450ºC) Four fluorine wire (-50~150ºC) |
| Diameter | 3mm~16mm |
| Terminal options | Y type, Pin, XH2.54 or according to client's request |
| Level of protection | IP68 |
