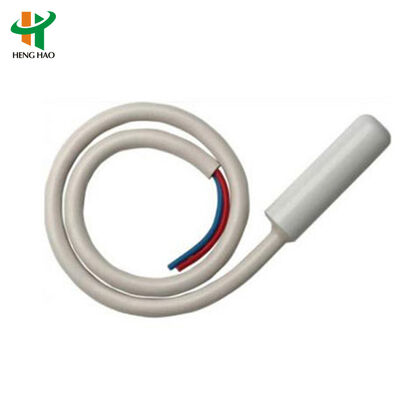

Ntc Temperature Sensor Thermistor Temperature Probe Platinum Resistor

Ntc Temperature Sensor Thermistor Temperature Probe Platinum Resistor
Ntc Temperature Sensor Thermistor Temperature Probe Platinum Resistor Ntc Temperature Sensor Thermistor Temperature Probe Platinum Resistor Ntc Temperature Sensor Thermistor Temperature Probe Platinum Resistor Ntc Temperature Sensor Thermistor Temperature Probe Platinum Resistor Ntc Temperature Sensor Thermistor Temperature Probe Platinum Resistor Ntc Temperature Sensor Thermistor Temperature Probe Platinum Resistor

صورة كبيرة :  Ntc Temperature Sensor Thermistor Temperature Probe Platinum Resistor

تفاصيل المنتج: شروط الدفع والشحن:
الحد الأدنى لكمية: 1000
الأسعار: 0.25

Ntc Temperature Sensor Thermistor Temperature Probe Platinum Resistor

وصف
رقم الموديل: المجلس الوطني الانتقالي نوع الاتصال: عادة مغلقة أو مفتوحة عادة
نوع التبديل: إعادة ضبط السيارات أو إعادة تعيين يدوي مواصفة: 12*16
المقاومة الاسمية: 5k ، 8k ، 10k ، 15k إلى 100k التباين R25: ± 1 ، ± 2 ، ± 3 ، ± 5 ، ± 10
معامل المواد: 2500 ~ 5000k B25/50 التباين: ± 1 ، ± 2
معامل التبديد: ≥0.8 ميجاوات/درجة مئوية الوقت الحراري ثابت: ≤25s
درجة حرارة العمل: -40 درجة مئوية ~ +250 درجة مئوية القوة المقدرة: 50 ميجا واط
نوع القضية: رأس شوكة، رأس حلقي، قطرات من رأس الماء، علبة معدنية، علبة نحاسية، رأس حقن سلك الرصاص: #24 30 # 2651، UL4411 28 #، موصل سلكي مزدوج
نوع المحطة: يمكن أن ينصب وفقا للمتطلبات
إبراز:

NTC thermistor temperature sensor probe,platinum resistor temperature sensor,NTC temperature probe with warranty

,

platinum resistor temperature sensor

,

NTC temperature probe with warranty

NTC Temperature Sensor Thermistor Temperature Probe Platinum Resistor
Product Specifications
Specification Name Scope Detection Condition
R25 (nominal resistance value) 5K, 8K, 10K, 15K to 100K Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%) ±1, ±2, ±3, ±5, ±10 Constant temperature 25ºC±0.05ºC
B25/50 or B25/85 (material coefficient) 2500~5000K Constant temperature 25ºC±0.05ºC
Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%) ±1, ±2 Constant temperature 25ºC±0.05ºC
Constant temperature 50ºC±0.05ºC
∫ (dissipation coefficient) ≥0.8mw/ºC Static in the air
T (thermal time constant) ≤25S Static in the air
Ta (Working temperature) -40ºC~+250ºC
Pn (rated power) 50mw within working temperature
Configuration Options

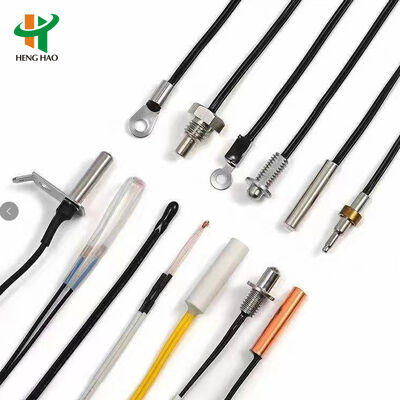

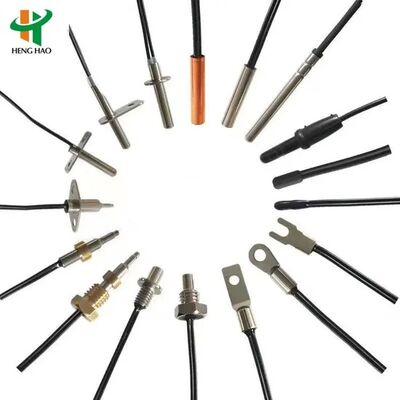

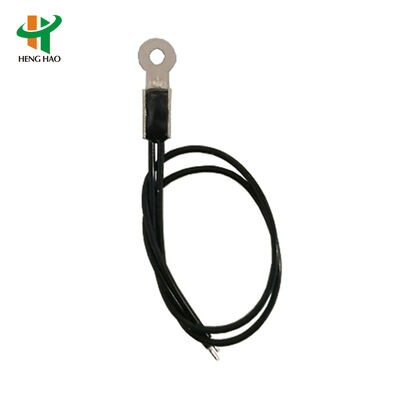

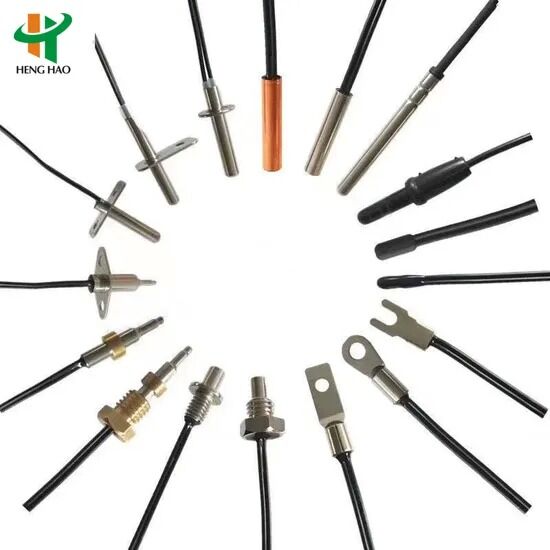

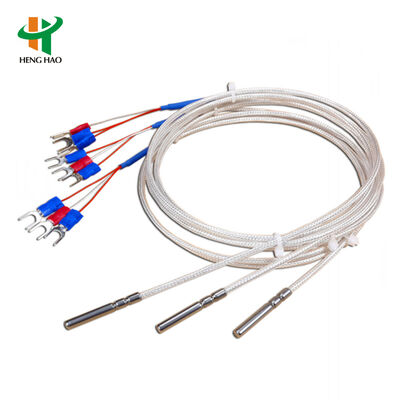

  • Case and head: Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
  • Lead wire: #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request
  • Terminal: Can be riveted according to the requirements of various terminals
Ntc Temperature Sensor Thermistor Temperature Probe Platinum Resistor 0 Ntc Temperature Sensor Thermistor Temperature Probe Platinum Resistor 1 Ntc Temperature Sensor Thermistor Temperature Probe Platinum Resistor 2
Our Services
  • Your inquiry will be replied within 12 hours
  • Well-trained and experienced staff are always at your service
  • Unique design products and many private mold product are waiting for your choice
  • Strictly protect your private information and your ideas of design
Frequently Asked Questions
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.
Q3. Do you have any MOQ limit for led waterproof string order?
A: At least 1 for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Temperature Specifications
Open temp. Reset temp. Open temp. Reset temp. Open temp. Reset temp.
-20ºC±5ºC 5ºC±5ºC 95ºC±5ºC 80ºC±5ºC 205ºC±5ºC 175ºC±10ºC
-15ºC±5ºC 5ºC±5ºC 100ºC±5ºC 80ºC±10ºC 210ºC±5ºC 180ºC±10ºC
-10ºC±5ºC 5ºC±5ºC 105ºC±5ºC 85ºC±10ºC 215ºC±5ºC 185ºC±10ºC
Note: Custom temperature specifications available according to client's request.
Ntc Temperature Sensor Thermistor Temperature Probe Platinum Resistor 3 Ntc Temperature Sensor Thermistor Temperature Probe Platinum Resistor 4
Applications

This temperature sensor is widely used in household electric appliances including coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, water dispensers, and more.
